AS PART OF Mr RAILS ONGOING EFFORT TO BRING REALISM TO YOUR MODEL RAILWAY.
WE HAVE DESIGNED TINY TO COMPLEMENT OUR AUTO STEAM CHUFFER BOARD THE ATCMK1.
THIS IS A STAND ALONE UNIT THAT COMES WITH REPLACEABLE BATTERIES .IT ONLY USES POWER WHEN THE WHISTLE IS TRIGGERED.
REMEMBER THIS UNIT IS DESIGNED TO MOUNT IN A WAGON, AND THEN FIT THE MAGNET ON THE TRACK OR MOUNT THE UNIT IN A BUILDING AND THE MAGNET ON THE WAGON, ITS UP TO YOU.
IF YOU WANT TO MOUNT IN A WAGON YOU WILL HAVE TO DRILL A COUPLE OF HOLES UNDER THE WAGON AND THREAD TO REED SWITCH WIRES THOUGH THEM, THEN CONNECT THE REED SWITCH BACK TO THE UNIT.

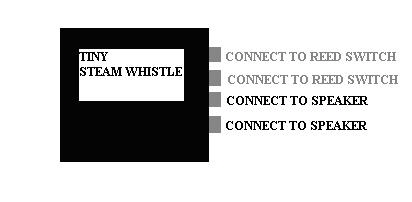

THE CONNECTIONS FOR THE UNIT ARE SHOWN BELOW THE PICTURE SHOWS LOOKING FROM ABOVE.
THIS IS A VERSION 2 OF THIS UNIT
PLEASE ENSURE WHEN CONNECTING THE WIRES IN THE TERMINAL BLOCKS THE WIRES GO IN THE HOLE AND NOT BETWEEN THE TERMINAL POST AND THE PLASTIC BODY.
YOUR MAGNET FOR TRIGGERING THE REED SWITCH WILL BE FOLDED IN A CARDBOARD WRAP.
IT IS A SMALL ROUND MAGNET ABOUT THE SIZE OF A SMALL WATCH BATTERY.
|
